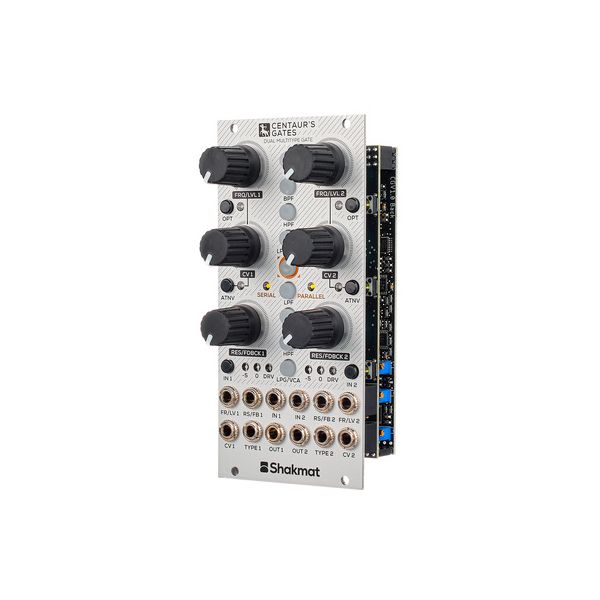

Shakmat Modular Centaur´s Gate B-Stock

Zboží „B Stock“ s plnou zárukou
Vrácené zboží s možnými drobnými známkami používání.

Eurorack Module

Dual multi-type gate
2 Independent channels with analogue signal path
Selectable operating modes per channel: low-pass, band-pass and high-pass filter with mild or aggressive resonance characteristics
Low pass gate with adjustable level boost
VCA with adjustable distortion and feedback
Control for frequency/level
CV (unipolar / bipolar switchable) and resonance/feedback
Switchable vactrol simulation and adjustable input gain with overdrive
CV inputs for all parameters
Serial or parallel operation and link function selectable
Compatible with Select Bus protocol
Power requirement: 190 mA (+12V) / 150 mA (-12V)
Width: 12 HP
Depth: 21 mm
