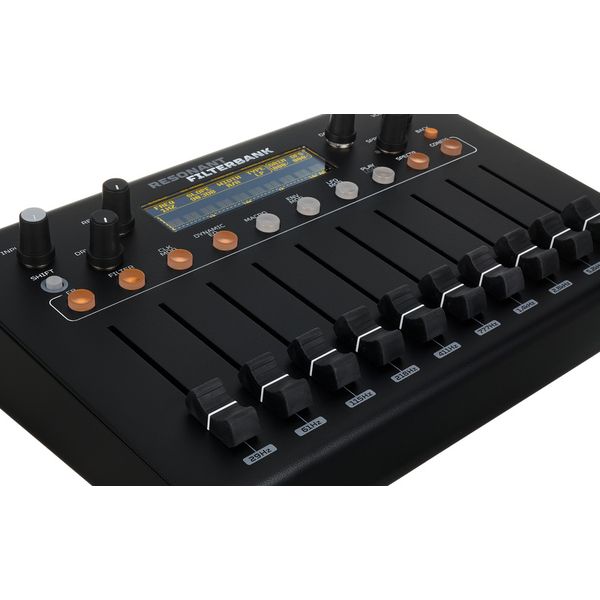

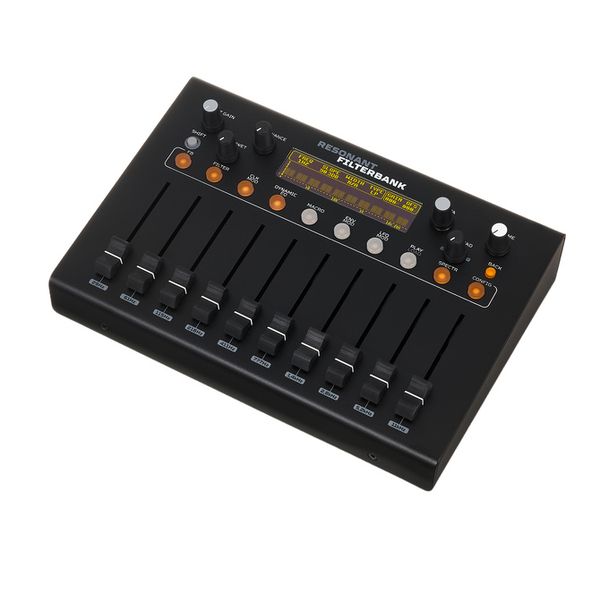

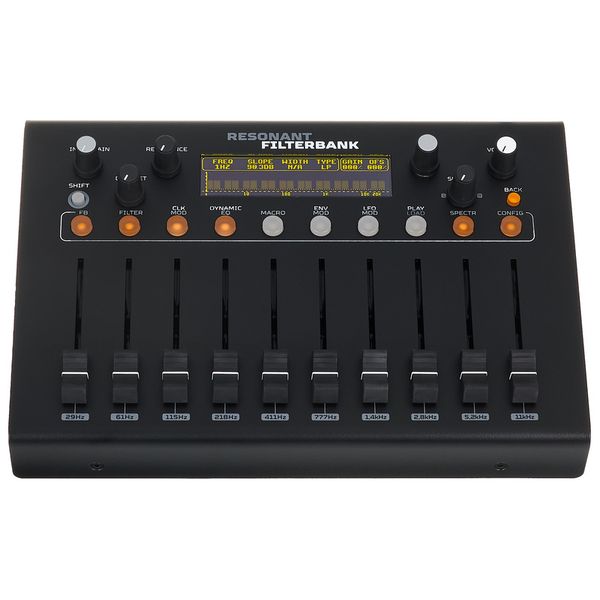

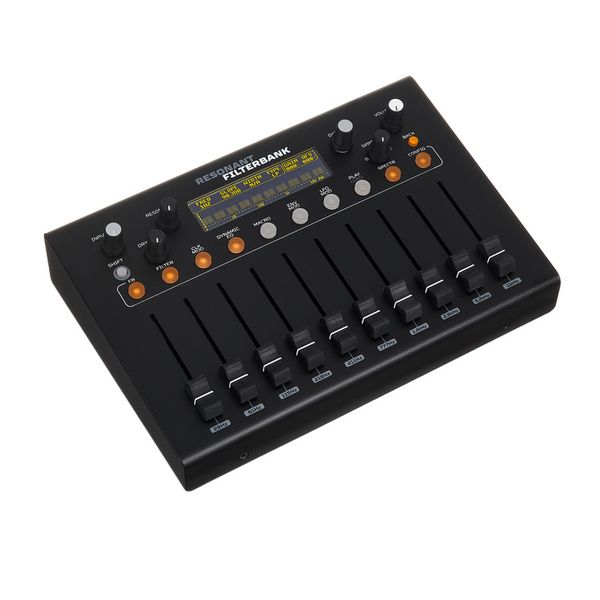

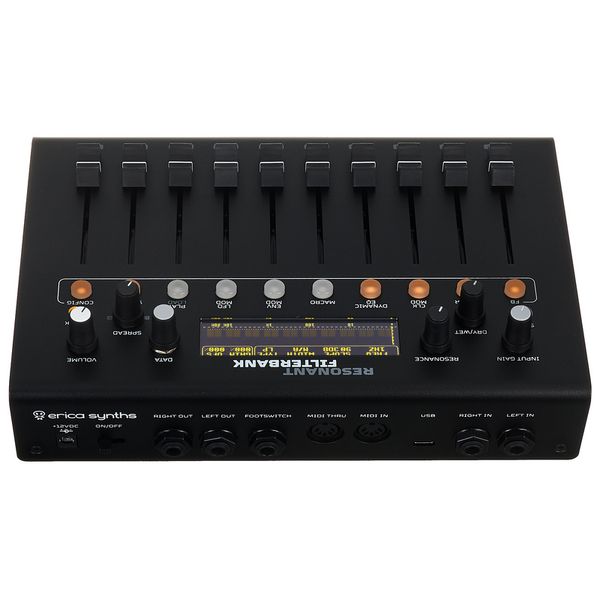

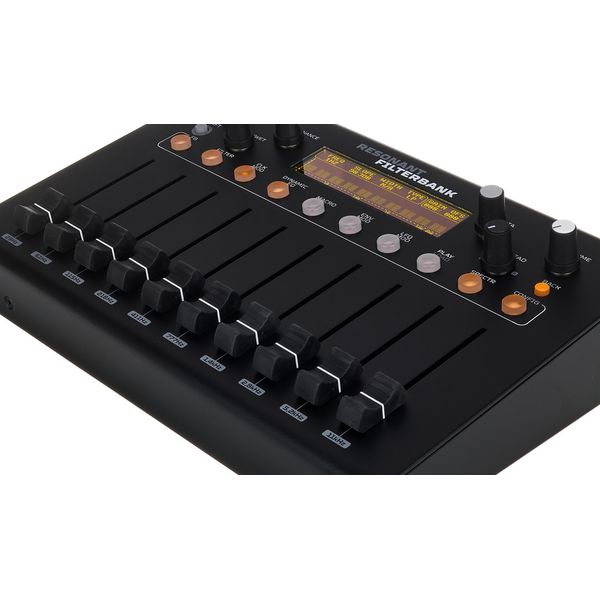

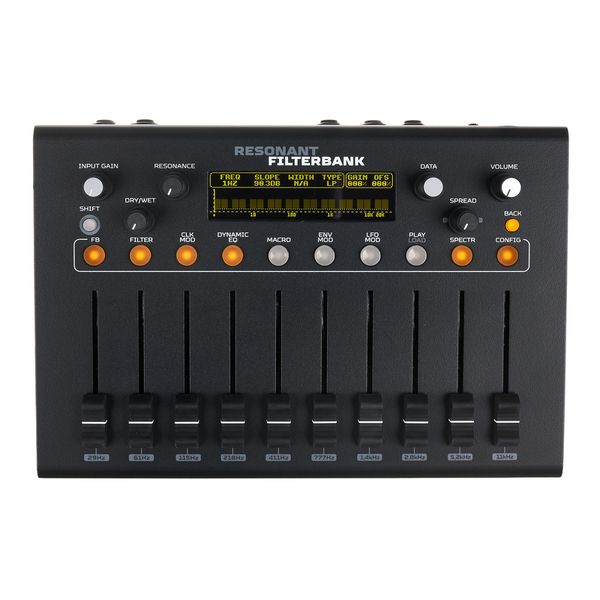

Erica Synths Resonant Filterbank
Analogue 10-Band Stereo Filter Bank
- A versatile effects unit for creative sound design, designed to generate unconventional sounds
- Robust desktop enclosure for live and studio applications
- Manual control of the filter bands via knobs or MIDI Control Change commands
- Filter frequencies: 29 Hz, 61 Hz, 115 Hz, 218 Hz, 411 Hz, 777 Hz, 1.5 kHz, 2.8 kHz, 5.2 kHz, 11 kHz
- Slope: 17 dB per decade
- Adjustable resonance characteristic and selectable feedback per band
- Control the resonance manually or via MIDI Control Change commands
- Additional multimode filter mode with low-pass, band-pass, high-pass or notch characteristics
- Spectrum Analyser and Dynamic Spectral Compressor modes: enhanced functionality
- Analogue input gain of up to +24 dB
- 20 separate LFOs and envelope followers
- MIDI clock synchronisation of events
- Memory locations for 128 presets
- Seamless morphing of presets
- OLED display and data encoder

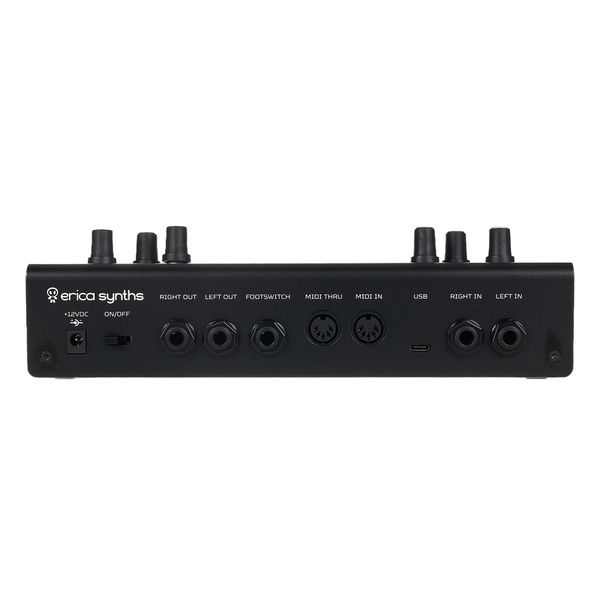

- 2 line inputs: 6.3 mm balanced TRS jack
- 2 line outputs: 6.3 mm balanced TRS jack
- MIDI In / Thru 5-pin DIN socket
- USB-C data port
- Footswitch connection: 6.3 mm T-type jack
- Barrel connector for power supply unit
- Dimensions (W x D x H): 258 x 176 x 70 mm
- Weight: 1.1 kg

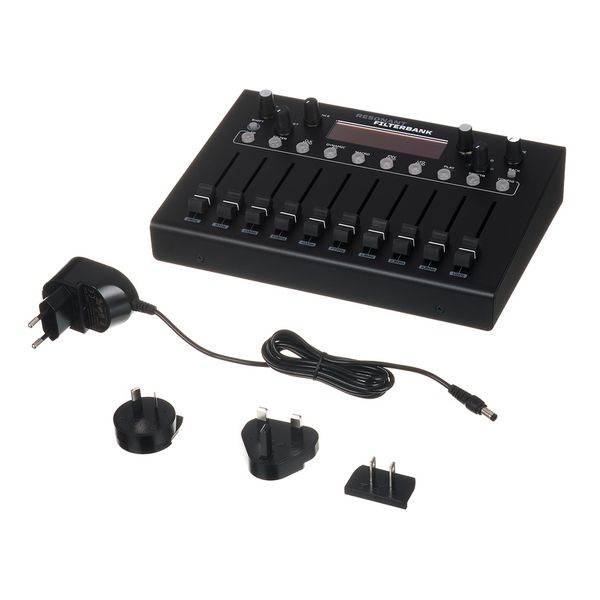

- Includes power supply unit (110-220V)
-
Číslo produktu 644266
-
Prodejní jednotka 1 ks
-
Bass Pedal No
-
Breath Controller No
-
MIDI Controller No
-
Filter Yes
-
Effects No
-
Sequencer No
-
Product Specific Expansion No
-
Saveable Effects Yes
-
MIDI-capable Yes
-
Footswitch connection Yes
-
