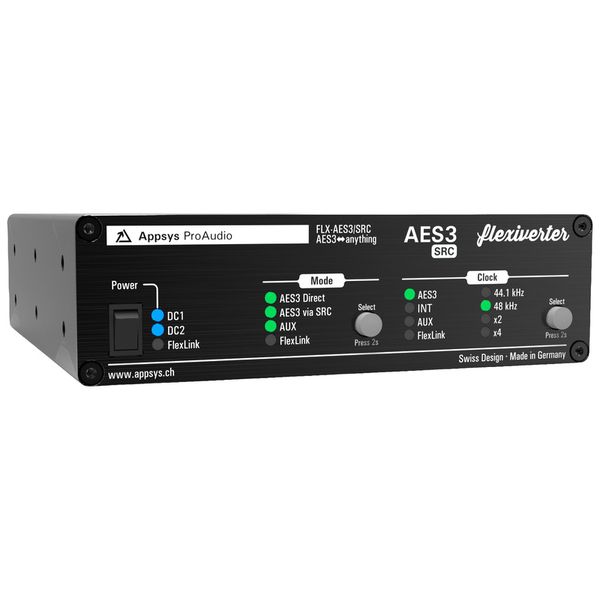

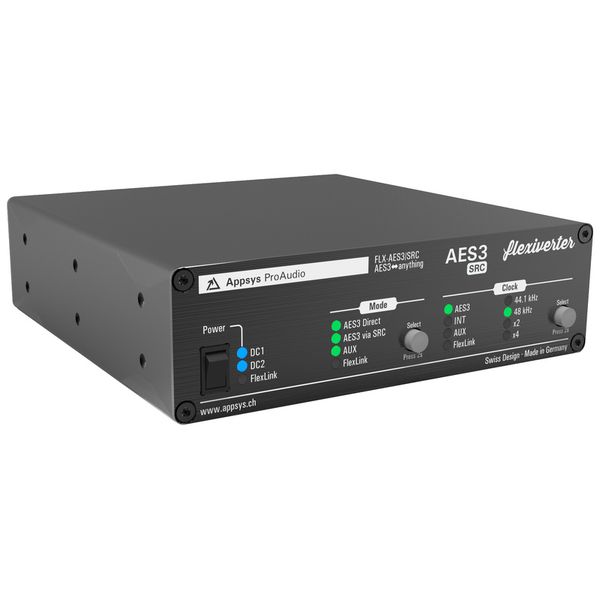

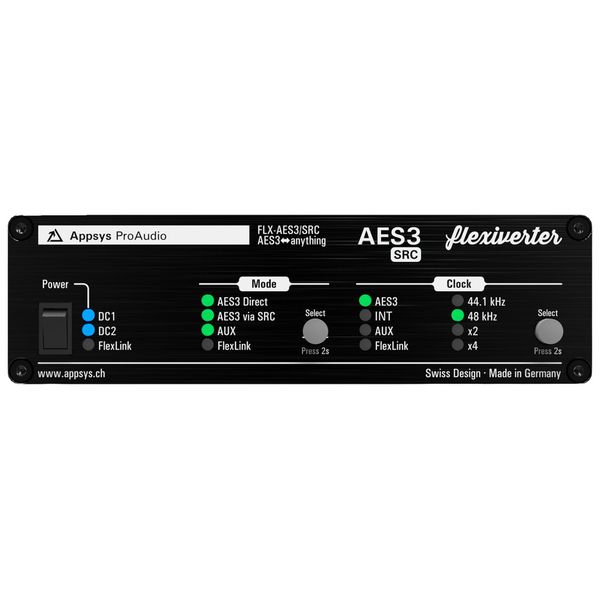

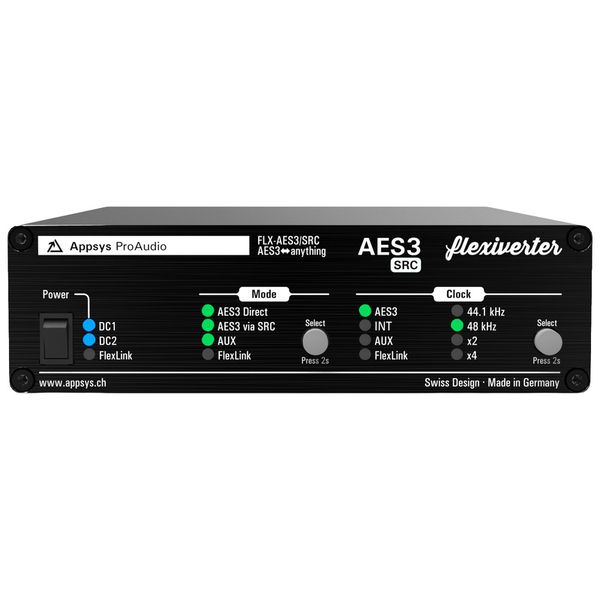

Appsys FLX-AES3/SRC

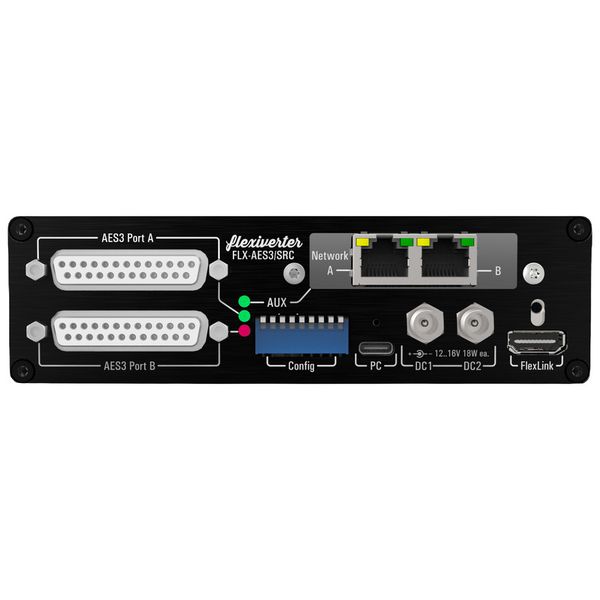

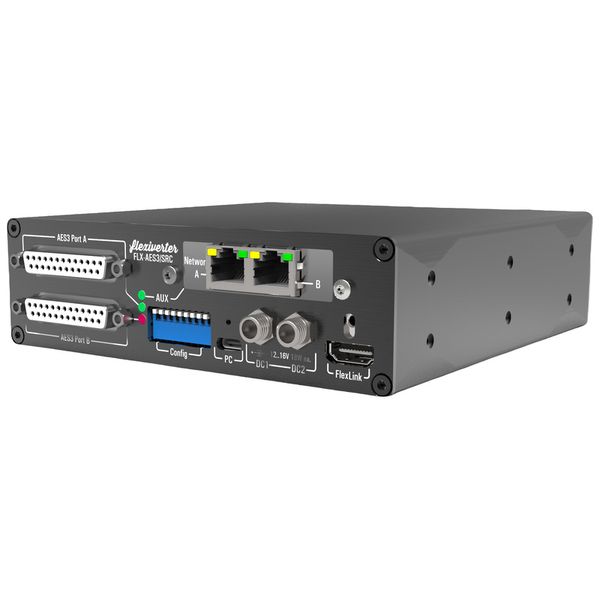

Appsys FLX-AES3/SRC; AES3-to-anything converter with built-in Sample Rate Converters; 16x16 channels of AES3 , which can be converted to any protocol installed into the AUX slot; all AES3 inputs can be routed through individual built-in SRCs to match a common clock; 16x16 channels of AES/EBU, fully transformer isolated; Inputs can optionally be routed over 8 individual SRCs, to convert streams with different clocks to house clock; 8 different input clock domains converted to the main clock domain, with top-notch SRCs (>120dB THD+N, >134dB DNR); can work as AES3/AES3 Sample Rate Converter (convert individually clocked inputs to common clock output); AUX port accepting any of the AUX Cards as conversion source/destination; supports arbitrary sample rates in the range from 44.1 to 192kHz; DB25 connector pinout (Tascam or Yamaha) selectable individually for each connector via internal jumpers; FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power; Web-based Remote control (no software required), or UART command line; Triple-redundant power supply; connections: 2x SUB-D25, 2x Ethernet RJ45, FlexiLink, USB-C, 2x DC-Input for redundant power supply; Dimensions: 152 x 44 x 153 mm (WxHxD); weight: 590g
-
Číslo produktu 651306
-
Prodejní jednotka 1 ks
-
Amount Of Channels 32
-
AD Conversion No
-
DA Conversion No
-
Max. Resolution Rate in Bits 24 bit
-
Max. Sampling Rate in kHz 192 kHz
-
S/PDIF Connecor No
-
AES/EBU Connector Yes
-
ADAT No
-
Word clock No
-
Number of analog inputs 0
-
Number of Analog Outputs 0
-
Headphone connection No
